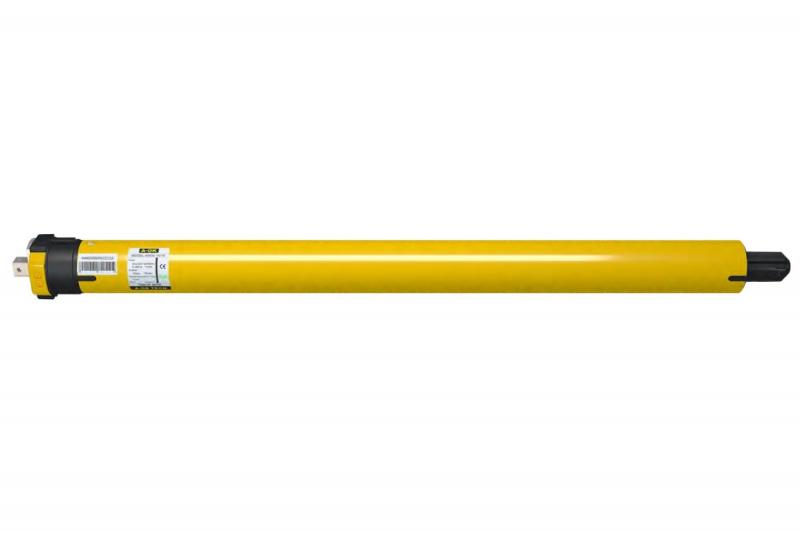

AM35 AC helical gear multiple electronic limits tubular motor

AM35 tubular roller shutter motor with electronic limit,Tubular motor diameter 35 mm adapters,designed for a quiet,widely uesd for roller blinds, windows, shops, projection walls or blinds.

  • Brand:

    A-OK
  • Item NO.:

    AM35
  • Color:

    Yellow or custom
  • Lead Time:

    30 days(A-OK standard)
  • Order(MOQ):

    1000 PCS
  • Warranty:

    up to 5 years
  • Certificate:

    CE/CB/TUV/C-TICK/R&TTE/FCC/RoHS/C-UL-US/C-TUV-US
  • Product Detail

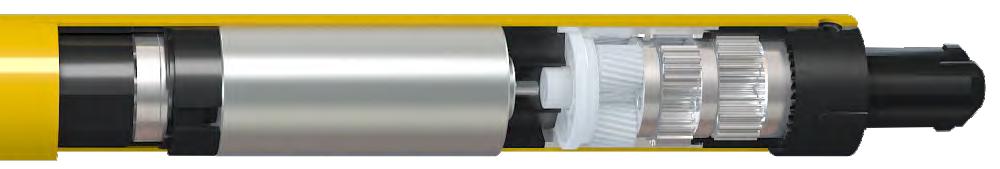

AM35 helical gear multiple electronic limits tubular motor



multiple electronic limits tubular motor



multiple electronic limits tubular motor

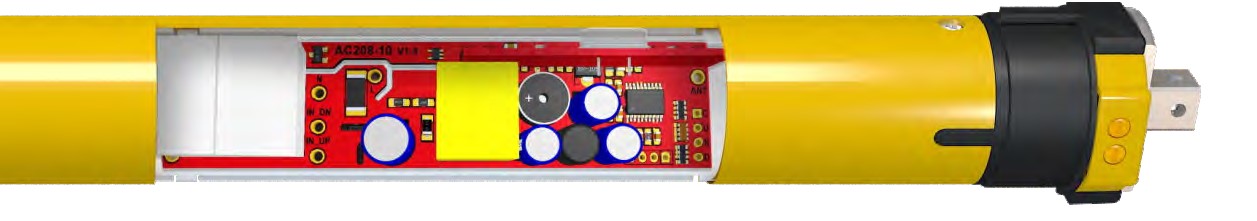

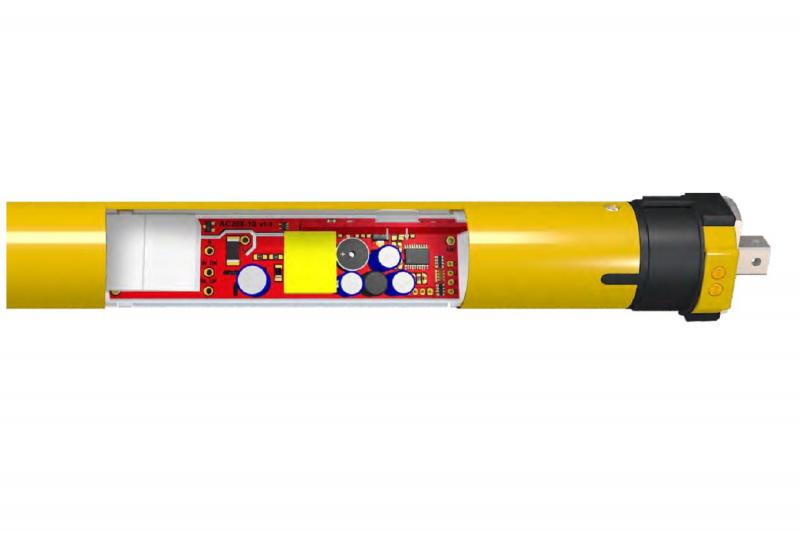

automatic electronic limit tubular motor



Specifications:

Model No. Rated Torque Rated RPM Motor Diameter Rated Voltage Rated Power Rated Current IP Class
230V AC 50/60Hz






AM35-6/28-MEL-PZ 6N.m 28rpm 35mm 230V 115W 0.485A IP44
AM35-8/19-MEL-PZ 8N.m 19rpm 35mm 230V 115W 0.485A IP44
120V AC 60Hz






AM35-6/28-MEL-PZ 6N.m 28rpm 35mm 120V 115W 1.1A IP44
AM35-8/19-MEL-PZ 8N.m 19rpm 35mm 120V 115W 1.1A IP44


Application:

AM35 helical gear multiple electronic limits tubular motor is mainly used in electric roller blinds, pleated blinds, Shangri-La blinds, electric screens, blinds and other products.




Features:

• Stop automatically when detect obstacle
• Displacement can be automatically corrected;
• International leading mute patented technology helical gear mute structure design; mute operation, the noise value is as low as 30db
• Support external hand control switch;
• Simple operation process, making the setting easier;
The motor is stable for a long time;
• Support RS485/232 computer control function, easy to integrate central control.



Controling:

Wireless remote control: operate with remote control, Easy operation and adjustment



Multi-controlling available in motors, please contact us for any enquires and technical help.
