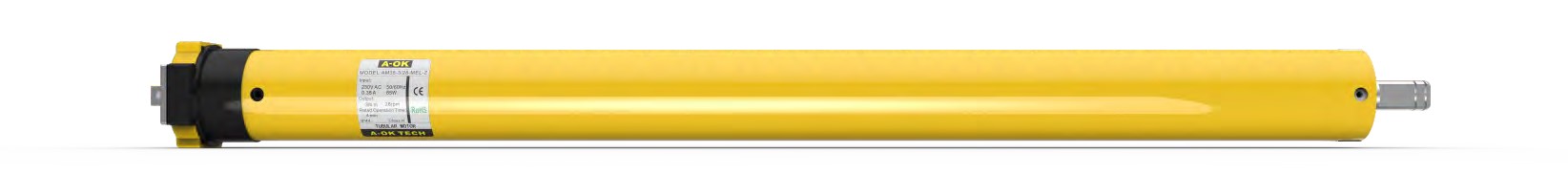

Highly engineered tubular 230v AC radio controlled motor suitable for most types of application due to its ability to be controlled remotely. Widely used for roof sun shading of luxury and huge buildings like laboratory, greenhouse, stadium, shopping mall etc.
Brand:
A-OKItem NO.:
AM45Color:
Yellow or customLead Time:
30 days(A-OK standard)Order(MOQ):
1000 pcsWarranty:
up to 5 yearsCertificate:
CE/CB/TUV/C-TICK/R&TTE/FCC/RoHS/C-UL-US/C-TUV-US
AM35 standard tubular motor
 |
 |
|
Standard limit head |
A type drive shaft |

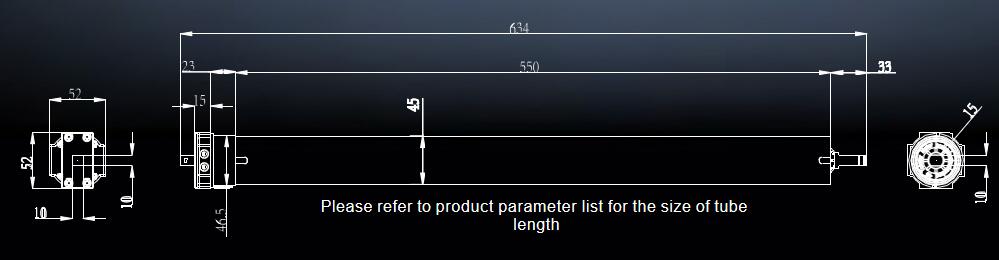

Parameters:
|
Model No. |
Rated Torque |
Rated RPM |
Motor Diameter |
Tube Length A |
Rated Voltage |
Rated Power |
Rated Current |
IP Class |
|
AM45-25/30-FTS |
25N.m |
30rpm |
45mm |
560mm |
230V |
280W |
1.27A |
IP44 |
|
AM45-40/12-FTS |
50N.m |
12rpm |
45mm |
540mm |
230V |
250W |
1.13A |
IP44 |
Features:
1.Quiet design, lower to 45dB
2.Repeat positioning accuracy is as low as 2 degrees
3.Max. limit is 55 circles
4.Double sided brake with high brake force

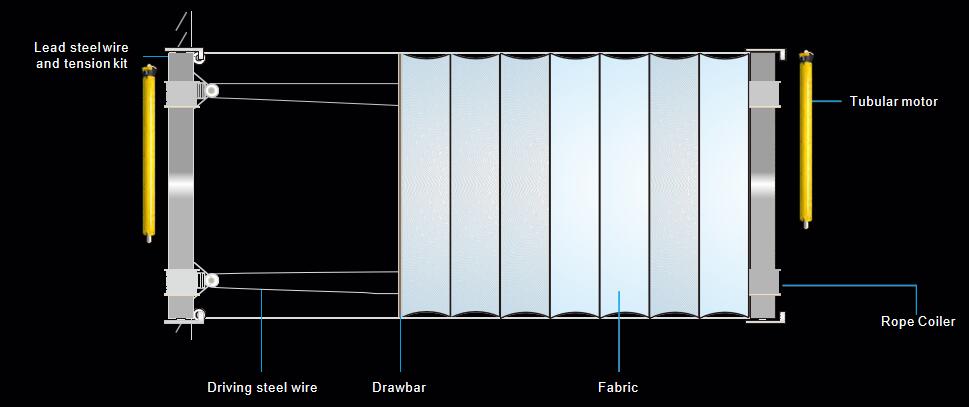

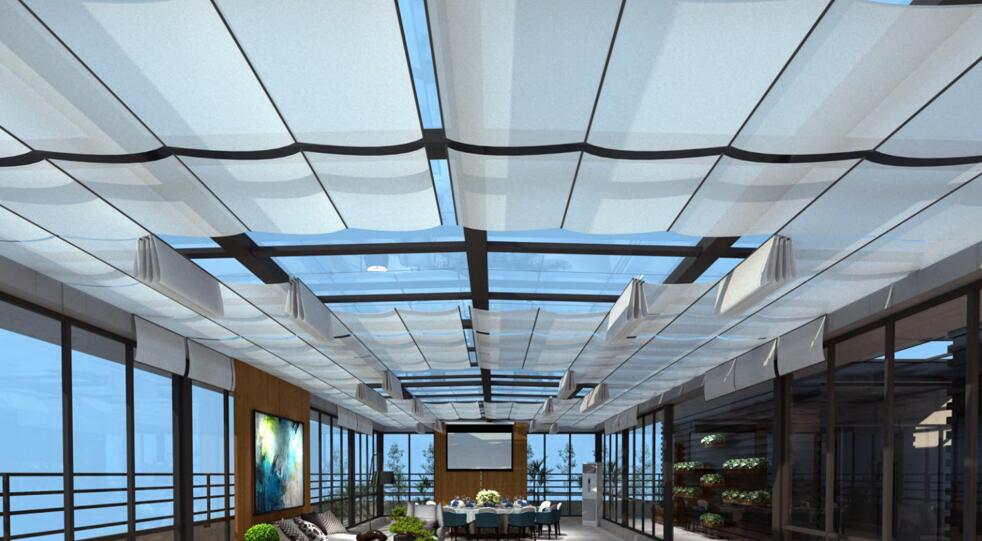

This system is mainly applied to roof sun shading of luxury and huge buildings like laboratory, greenhouse, stadium, shopping mall etc., it is used for getting comfort lighting. Motorized FTS is made up by the motor and controller to get the fabric tension automatically, it is available to connect with external switch, remote control and middle control.
Controling:
Multi-controlling available in motors, please contact us for any enquires and technical help.
Project:
45mm AC Remote control zigbee tubular motor,is powerful enough to work with various motorized roller blinds,roller shutter,wooden venetian blinds,and even motorized clothes pole.
This motor is mainly used for small and medium size of roller shutters, rolling doors and awnings etc. It can be manually operated when there is no power supply.
AM45 multiple electronic limit tubular motor mainly applied to high-end projection screen, roller blinds etc, especially for high position application.The Tube is applied with mute system which effectively reduces vibration and noise.
This motor is mainly applied for small and medium size of roller blind, projection screen, roller shutter, awning etc. It is the ideal model for computer or building central control through RS485/232 interface.
AM45 parallel tubular motor can implement multiple motors in parallel connection, realizing reliable group control control, simple wiring, and convenient engineering installation
This motor is mainly applied for small and medium size of roller blind, projection screen, roller shutter, awning etc. It is the ideal model for computer or building central control through RS485/232 interface.
AM45 Obstacle Tubular Motor is mainly applied for the window shutter, electronic limit set, stop and rebound when meet with resistance, simple and safe operation. It's widely used in roller shutters of office building, meeting room and residence.
